Can You Replace an Extractor Fan Yourself? A DIY Guide

You stare at the ceiling in your bathroom. The old extractor fan is rattling like a lawnmower or, worse, it’s completely silent while steam from your shower clings to the mirror. It’s tempting to call a handyman, but that service call fee stings when you know the part itself costs less than a takeaway dinner. So, can you replace an extractor fan yourself? The short answer is yes, for most standard setups. But before you grab your screwdriver and ladder, you need to understand exactly what you’re getting into.

This isn’t rocket science, but it does involve electricity and potential water exposure. If you treat it with respect and follow a logical sequence, you can save significant money and get a quieter, more efficient unit running in under two hours. Here is how to do it safely and correctly, specifically keeping Australian wiring standards and common Perth housing types in mind.

The Reality Check: Is Your Job DIY-Friendly?

Not all fans are created equal, and not all homes make this job easy. Before buying anything, assess three critical factors: access, wiring complexity, and ducting type.

First, check your access point. Most residential extractor fans in Australia are either mounted directly to the ceiling (surface-mounted) or recessed into the ceiling cavity (inline or cassette style). Surface-mounted units are the easiest DIY projects because everything is visible. Recessed units require you to work inside the roof space or through a small hatch, which can be cramped and dusty. If you have a tiled roof with no access hatch, you might need to remove tiles, adding a layer of difficulty.

Second, look at the wiring. In older homes, you might find a simple switched live wire. In newer builds, especially those with compliance to AS/NZS 3000 (the Wiring Rules), you might see multiple cables, including neutrals, earths, and sometimes separate feeds for lights and fans on different switches. If you open the junction box and see a tangle of wires without clear labels, pause. You don’t want to guess which wire is live.

Third, inspect the ducting. Does the fan vent directly outside through a wall or roof tile, or does it push air into a shared system? Direct venting is straightforward. Shared systems often have backdraft dampers that can seize up. If your current fan has a long, flexible foil duct that snakes around beams, replacing just the fan might not fix the underlying airflow issue if the duct is crushed or disconnected.

Safety First: Electricity and Water Don’t Mix

This is the non-negotiable part. Working near wet areas involves specific risks. In Australia, bathrooms are classified as "wet zones." While low-voltage rules apply, mains voltage (230V) is dangerous.

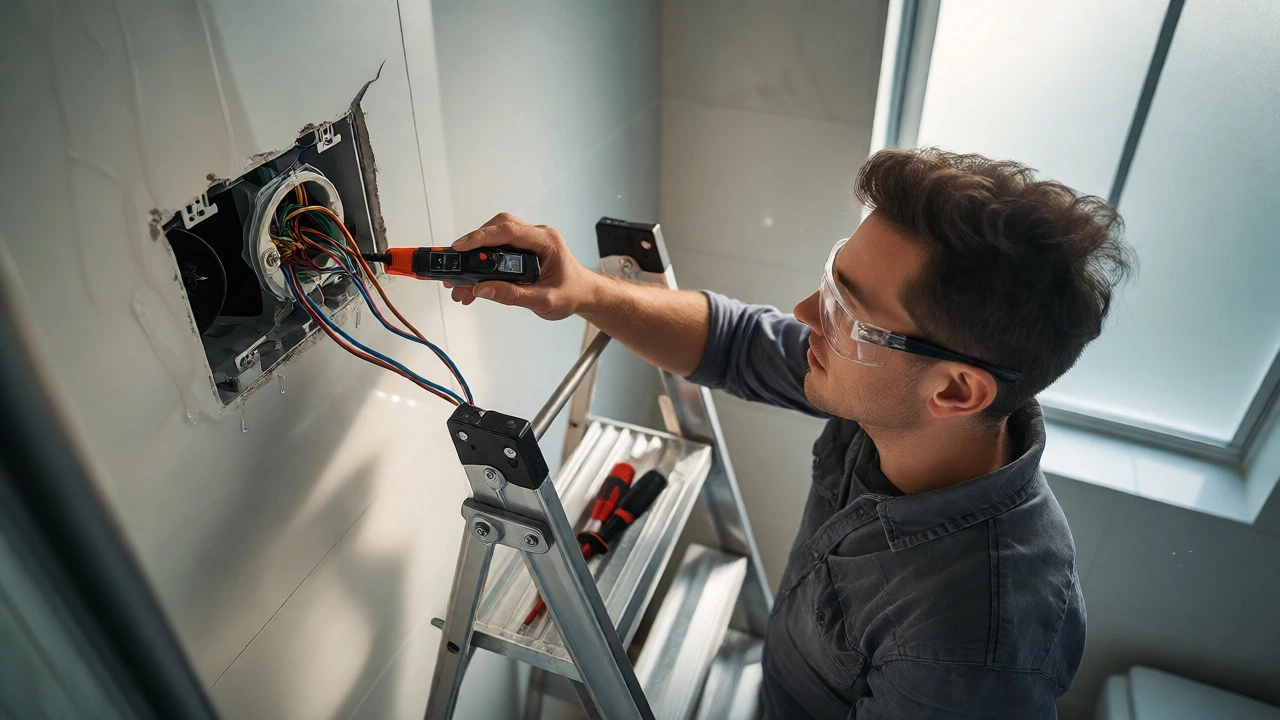

Turn off the power at the switchboard, not just the light switch. This sounds obvious, but many people forget that the fan might be wired to a different circuit than the bathroom light. Use a multimeter or a non-contact voltage tester to confirm the wires are dead before touching them. Never rely solely on the fact that the fan stopped spinning when you flipped the switch.

Also, consider the environment. Bathrooms are humid. Moisture corrodes connections over time. When you open the old unit, expect some rust or grime. Have cleaning supplies ready. And please, wear eye protection. Ceiling dust, insulation fibers, and old paint flakes love to fall directly into your eyes when you’re looking up.

Choosing the Right Replacement Unit

Don’t just buy the cheapest white square from the hardware store. Match the specifications to your needs. The key metric here is airflow, measured in liters per second (L/s) or cubic meters per hour (m³/h). For a standard average-sized bathroom, aim for at least 50 L/s. Larger ensuites or bathrooms with showers only (no tub) might need 75-100 L/s.

Noise matters too. Look for units rated under 40 decibels for quiet operation. Some premium models use DC motors which are significantly quieter and more energy-efficient than traditional AC motors. They cost more upfront but last longer and consume less power. If you plan to run the fan after every shower, that efficiency adds up.

Check the mounting size. Measure the existing cutout hole in the ceiling. Standard sizes are often 200mm x 200mm or 300mm x 300mm. If you buy a unit that doesn’t fit the hole, you’ll end up cutting drywall or plaster, which creates a mess and requires patching and painting later. Stick to the same dimensions unless you’re prepared for carpentry work.

Step-by-Step Installation Process

Once you’ve bought the right fan and confirmed the power is off, here is the workflow. Keep your phone nearby to take photos of the original wiring before disconnecting anything. This is your insurance policy against forgetting where each wire goes.

1. Remove the cover: Most fans have spring clips or screws holding the grille. Gently pry it off. Set it aside carefully; plastic becomes brittle with age.
2. Disconnect the duct: If there’s a flexible duct attached, loosen the clamp or tape securing it. Pull the duct gently away from the fan spigot. Be careful not to tear the old duct if you plan to reuse it (though replacing it is recommended).
3. Unscrew the motor housing: Remove the screws holding the fan motor assembly to the ceiling bracket. Lower it down. Support its weight as you disconnect the wires.
4. Label and disconnect wires: Using masking tape, label the wires coming from the house (Live, Neutral, Earth) and the corresponding terminals on the old fan. Disconnect the wire nuts or terminal blocks. Note: In Australia, Live is typically Brown, Neutral is Blue, and Earth is Green/Yellow striped. Always verify with your tester.
5. Install the new mounting bracket: If the new fan comes with a new bracket, install it now. Ensure it’s secure in the joists or solid backing. Old brackets can be loose; tighten any screws.

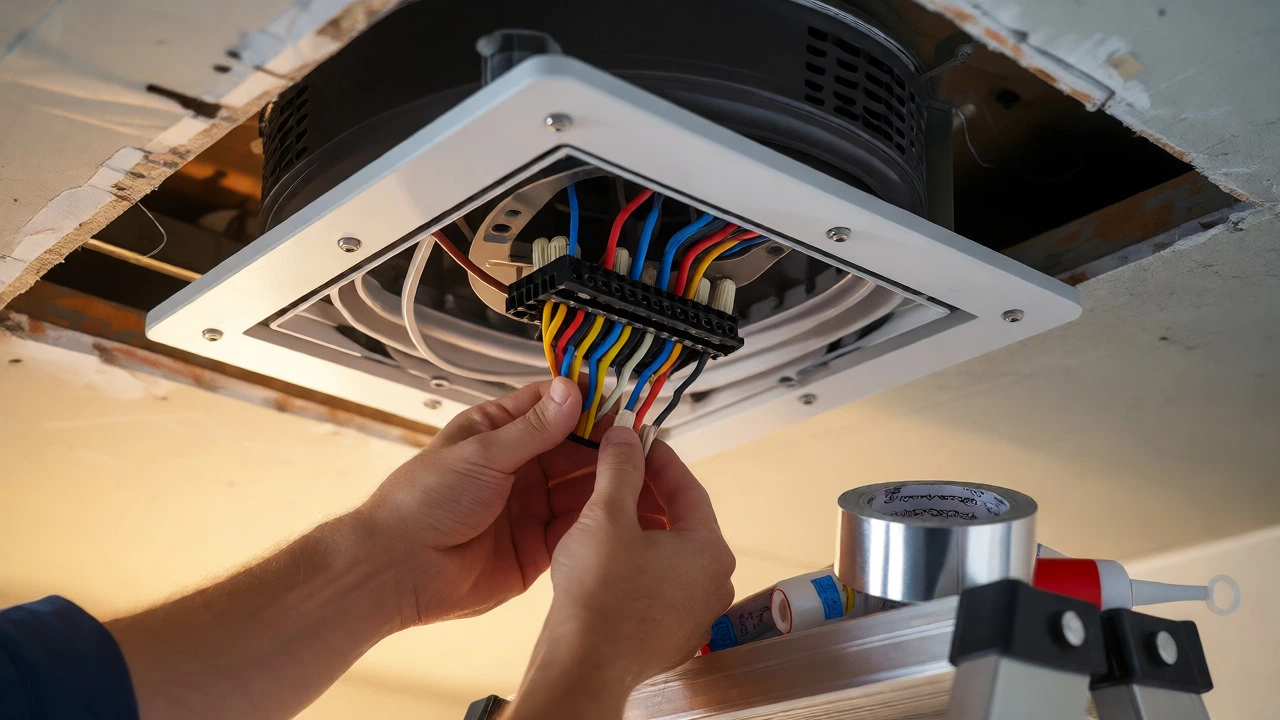

6. Connect the new fan: Attach the wires. Connect House Live to Fan Live, House Neutral to Fan Neutral, and House Earth to Fan Earth. Use proper connectors-wire nuts must be tight, or terminal screws firmly secured. No loose strands should show.
7. Reattach the motor and duct: Lift the new motor assembly into place. Secure it to the bracket. Reconnect the ducting. Use high-quality aluminum tape or metal clamps for the duct connection. Plastic zip ties can melt or degrade over time due to heat and humidity.
8. Test before final assembly: Turn the power back on briefly. Test the fan. Listen for unusual vibrations. Check that it pulls air effectively (hold a tissue near the intake-it should stick). Turn the power off again.
9. Install the grille: Snap or screw the new cover into place. Clean the surrounding area.

Common Pitfalls and How to Avoid Them

The biggest mistake homeowners make is ignoring the damper. Many inline fans have a flap that opens when the fan runs and closes when it stops to prevent cold air or bugs from entering. If this flap is stuck shut, your new fan will hum loudly but move no air. Inspect the damper mechanism on the new unit before installing. Ensure it moves freely.

Another issue is poor sealing. If the gap between the fan housing and the ceiling isn’t sealed properly, moist air leaks into the roof cavity instead of going out the vent. This leads to mold growth in the attic. Use silicone sealant around the perimeter of the mounting plate if required by the manufacturer’s instructions.

Finally, consider the timer. Many modern fans come with built-in timers or humidity sensors. If your current setup uses a pull-cord switch, switching to a timed fan might confuse users who expect immediate stop/start. Decide if you want to keep the manual switch or upgrade to an automatic system. Automatic systems are great for preventing "I forgot to turn it off" scenarios, which waste energy and wear out the motor.

When to Call a Professional

DIY is great, but knowing your limits saves headaches. Call a licensed electrician or handyman if:

• You find damaged wiring: Frayed insulation, burnt marks, or exposed copper indicate deeper issues.
• The wiring doesn’t match: If you have complex multi-way switching or smart home integrations that you didn’t anticipate.
• Access is impossible: If you cannot safely reach the roof cavity or the fan is embedded in a concrete slab ceiling.
• Water damage is present: If you see signs of leaking from above, fix the leak first. Installing a new fan over a wet ceiling is futile.

In Australia, strictly speaking, fixed wiring changes often require a licensed electrician to certify the work, especially if you are altering circuits. However, swapping a like-for-like appliance where the wiring points remain unchanged is generally considered within homeowner scope for maintenance. If in doubt, consult local regulations in Western Australia.
