Noticing something off with your hot water? Ignoring the warning signs can turn a simple repair into a costly replacement. Below you’ll learn the most common red flags that signal a water heater is on its last legs, how to diagnose each issue, and when it’s time to call a pro.
Quick Summary
- Strange noises, rusty water, or a leaking tank are immediate clues.
- Check the Pressure Relief Valve and Anode Rod at least once a year.
- Temperature fluctuations often point to a failing Thermostat or Heating Element.
- Corrosion, sediment build‑up, and gas smells are safety hazards that need urgent attention.
- If any red flag appears, schedule a professional inspection before the warranty expires.
What Is a Water Heater?
Water Heater is a household appliance that stores and heats water for domestic use, typically using electricity or gas as the energy source. Modern units consist of a metal tank, an internal heating mechanism, and a network of safety components that keep temperature and pressure within safe limits. When any part of that system starts to fail, the device sends out subtle (and sometimes not‑so‑subtle) signals-the red flags we’re about to unpack.
Red Flag #1: Leaking Water
Water on the floor under the heater is a clear sign that something’s gone wrong. The leak could be coming from the Tank itself, the metal container that holds the heated water, or from connections such as the inlet/outlet pipes. If the tank is corroded, you’ll often see rust stains or puddles forming at the base. Small drips may be caused by a loose pipe joint, but a steady stream usually means the inner lining has failed and the whole unit will need replacement.
Red Flag #2: Strange Noises

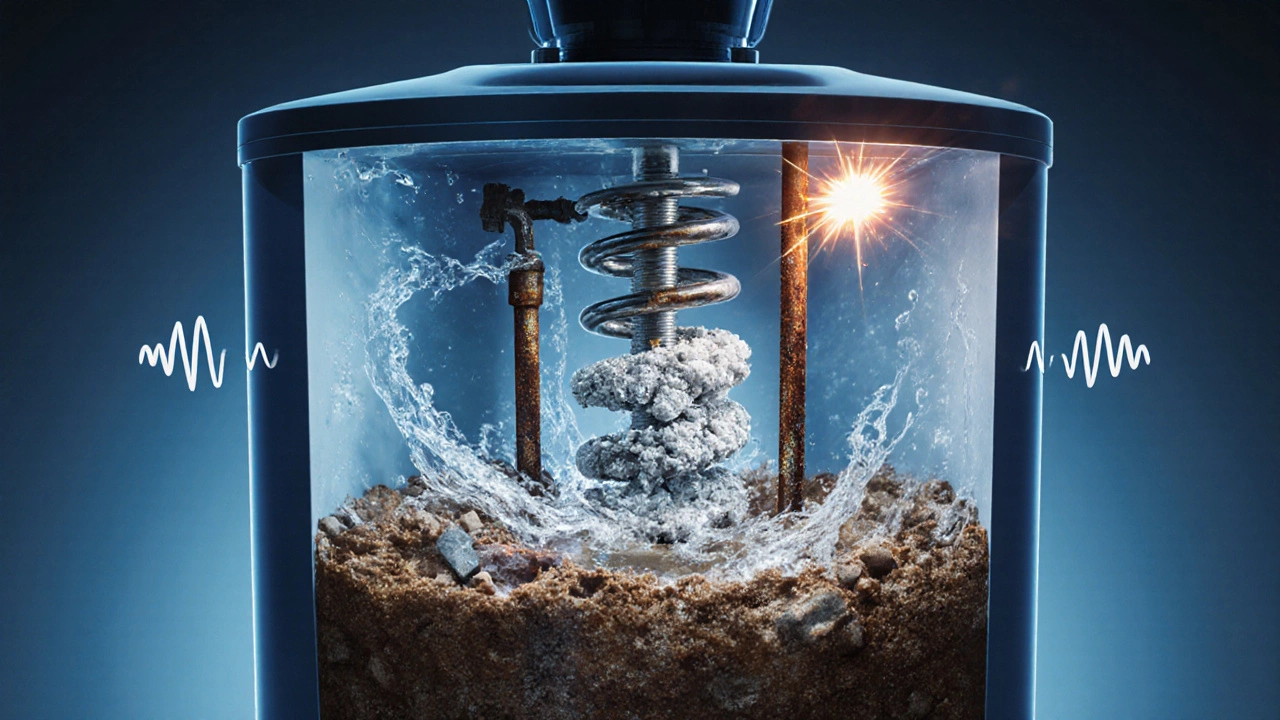

Listen for popping, rumbling, or whining sounds when the heater powers up. A Heating Element that’s coated with mineral deposits will create a loud pop as the water flashes to boil around it. Similarly, a sediment layer at the bottom of the tank can cause a rumbling “boiling” noise as water tries to circulate around the debris. If you hear high‑pitched whines, the electrical components or gas burner may be vibrating-another cue to check the Thermostat.
Red Flag #3: Rusty or Discolored Water
When you turn on the tap and see brown, orange, or even pink water, the Anode Rod is likely giving up the fight against corrosion. The rod, usually made of magnesium or aluminum, sacrifices itself to protect the steel tank. Once it’s depleted, the tank starts to rust and the rust mixes with the water. A quick flush won’t fix this; you’ll need to replace the anode rod or the entire heater.
Red Flag #4: Inconsistent Water Temperature
If hot water suddenly feels lukewarm, then hot again, the thermostat or the gas burner (for gas units) might be misreading the tank’s temperature. A failing Thermostat can cause the heater to shut off prematurely, while a faulty Burner may not light consistently. In electric models, one of the two heating elements may have burned out, leaving only half the heating capacity active.
Red Flag #5: Water Smells Bad
A rotten‑egg or sulfur smell usually points to a bacterial buildup in the tank. Warm, stagnant water is a breeding ground for sulfur‑reducing bacteria, which produce hydrogen sulfide gas. The solution is a thorough tank flush with a vinegar‑water solution, but if the odor persists after cleaning, the tank’s lining is compromised and replacement is advisable.
Red Flag #6: The Pressure Relief Valve (PRV) Discharges Water
The Pressure Relief Valve is a safety valve that opens if internal pressure or temperature exceeds safe limits. If you notice water spilling out of the discharge pipe, the valve has activated-either because the water temperature is too high or there’s excess pressure from a blockage. A PRV that constantly leaks indicates a serious problem with the heating cycle or a blocked vent, and it must be inspected immediately.
Red Flag #7: Age of the Heater
Even without obvious symptoms, the age of the unit matters. Gas water heaters average a lifespan of 8‑12 years; electric models can last 10‑15 years. If your unit is near or past its expected service life, the odds of future failures rise dramatically. Planning a replacement before the heater quits can save you from a sudden cold‑shower emergency.
Red Flag #8: Higher Energy Bills
When your quarterly electricity or gas bill climbs without a change in usage, the heater may be working harder than it should. Inefficient heating caused by a failing thermostat, sediment‑clogged tank, or a worn‑out burner forces the system to run longer cycles, spiking energy consumption. Monitoring your bills can surface hidden performance issues before they become catastrophic.
Quick Diagnostic Checklist
| Red Flag | Possible Cause | Urgency |
|---|---|---|
| Leak at base | Tank corrosion or loose connections | High - replace or repair immediately |
| Rumbling/popping noises | Sediment build‑up or mineral‑coated heating element | Medium - flush tank, replace element if needed |
| Rusty water | Depleted anode rod, tank rust | High - replace anode rod or unit |
| Temperature swings | Faulty thermostat, burned‑out element, irregular burner | Medium - test thermostat, replace part |
| Sulfur smell | Bacterial growth, compromised tank lining | Medium - clean, monitor, replace if persistent |
| PRV water discharge | Excess pressure/temperature, blocked vent | High - inspect safety system |
| Age > 12 years | Natural wear, decreasing efficiency | Low‑Medium - plan replacement |
| Rising energy bills | Inefficient heating, sediment, failing parts | Medium - service check |
How to Perform Basic Maintenance
- Turn off power or gas supply, then shut off the water inlet.
- Open a hot‑water tap to relieve pressure.
- Drain the tank by attaching a hose to the drain valve; let water flow until it runs clear.
- Inspect the Anode Rod for corrosion; replace if it’s more than 6 inches long or heavily worn.
- Flush the tank with a vinegar‑water mix (1 part white vinegar to 2 parts water) for 30 minutes to dissolve mineral deposits.
- Close the drain valve, remove the hose, and refill the tank. Open the pressure relief valve briefly to purge air.
- Restore power/gas, then test for normal operation.
Regular flushing (once a year in hard‑water areas) and anode‑rod checks can prevent most of the red flags listed above.
When to Call a Professional
While DIY upkeep handles sediment and minor leaks, certain issues demand a licensed plumber or hot‑water specialist:
- Persistent PRV discharge or water at the vent pipe.
- Large cracks or bulging sections on the tank.
- Gas smell or suspected burner malfunction.
- Repeated thermostat failures after replacement.
- Unit age beyond the manufacturer’s warranty without clear signs of improvement.
Attempting to repair gas components without proper certification can be dangerous and may void insurance coverage.
Choosing the Right Replacement
If the red flags point to a terminal failure, you’ll need a new water heater. Consider these factors:
- Fuel type: Gas heats faster and is cheaper to run in most Australian homes, but electric units are easier to install and have no venting requirements.
- Capacity: A 150‑litre tank suits a 3‑person household; larger families may need 200‑litre or more.
- Energy rating: Look for the Australian Government’s Energy Rating label; a 5‑star unit can cut energy use by up to 30%.
- Space constraints: If you’re low on floor space, a Heat Pump Water Heater (though not a traditional tank) offers high efficiency in a compact footprint.
Matching the right size and fuel type to your home’s usage patterns will keep you from facing the same red flags again.
Key Takeaways
Keeping an eye on the signs listed above lets you catch water‑heater trouble early, save on energy bills, and avoid a cold‑shower disaster. Remember to:
- Inspect for leaks, noises, and water quality every six months.
- Flush the tank annually and replace the anode rod every 2‑3 years.
- Test the Pressure Relief Valve during each maintenance cycle.
- Schedule a professional check if any safety‑related red flag appears.
What causes a water heater to make popping noises?
Popping sounds usually mean mineral deposits have built up on the heating element or at the bottom of the tank. When the water turns to steam around those deposits, it creates a rapid expansion that sounds like a pop.
How often should I check the anode rod?
Inspect the anode rod at least once a year. In hard‑water areas, replace it every 2‑3 years to keep the tank from rusting.
Is a leaking tank always a sign to replace the heater?
If the leak is coming from the tank itself, rust has likely breached the metal, and replacement is the safest route. Small connection leaks can sometimes be tightened or re‑gasketed, but the tank should be inspected for corrosion.
Why does my water heater emit a sulfur smell?
A rotten‑egg odor stems from hydrogen sulfide gas produced by bacteria thriving in warm, stagnant water. A thorough vinegar flush often clears it, but persistent smells suggest the tank’s interior lining is breaking down.
Can I replace the pressure relief valve myself?
Yes, the PRV is a replaceable part, but you must shut off the water and power, relieve tank pressure, and ensure the new valve meets local safety standards. If you’re unsure, call a licensed plumber.
